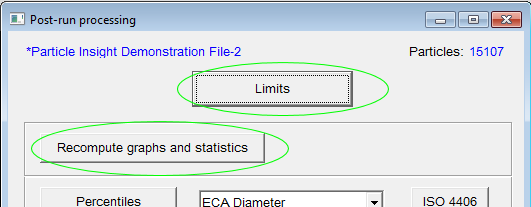

Post-process reanalysis can generate new statistical results after placing new restrictions on any desired measure or measures, that act in addition to the original limits that were in effect during the run.
 |

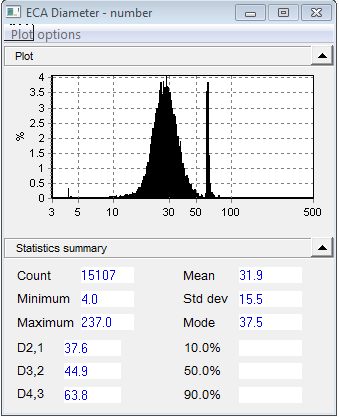

This is ECA data from a demonstration sample that contains powder plus monosized beads. |
|

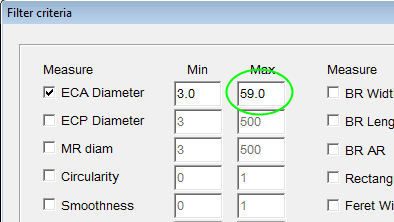

To demonstrate how to filter out the monosize beads in post-process, we go to Filter and enter an upper limit of 59 for the ECAD measure. |
||
 |
 |
|
 |

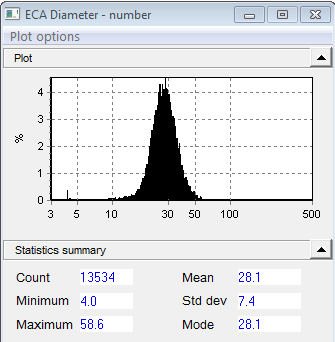

The new results show statistics for just the powder part of the sample. |
|
 |
 |
|
|

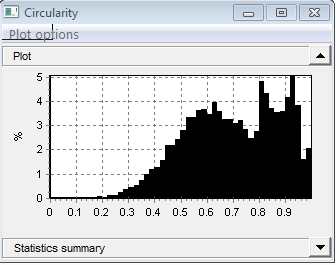

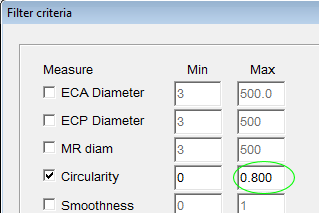

Looking at the original Circularity graph, we suspect that the counts above 0.80 are the spherical beads. This gives us another way to separate out the two particle types. If we restrict Circularity to be less than 0.8, again the monomodal spike disappears: |
||
 |
||
